Microsoft Windows and Hyper-V monitoring

LPAR2RRD is able to monitor stand-alone MS Windows servers and MS Hyper-V performance metrics.
Implementation is done through single Windows OS agent running on any Windows host in the Windows domain.
This OS agent gets all required configuration from the AD and performance data of monitored hosts through WMI.
It passes such data to LPAR2RRD server running on Linux where data is saved and presented.

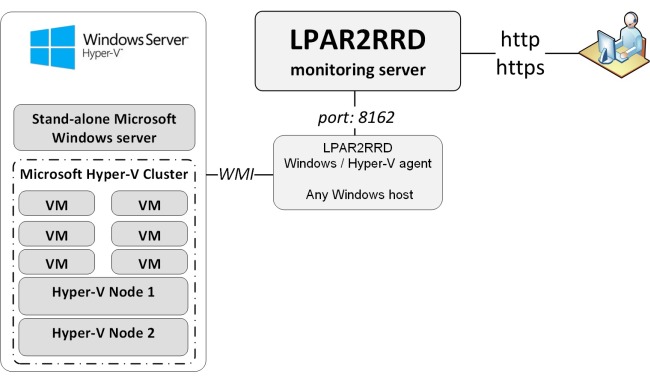

Hyper-V schema

Monitored components

  • MS Windows server
  • Hyper-V Cluster
  • Hyper-V Cluster node
  • Hyper-V Disk
  • Hyper-V Virtual Machine

Monitored metrics

  • CPU
  • Memory utilization
  • Paging
  • LAN throughput MB/sec
  • Disk throughput MB/sec
  • Disk throughput IOPS
  • Disk latency
  • Disk capacity

Feature matrix


  CPU

  Memory

  Disk

  Network

Cluster yes yes
Hyper-V Node yes yes yes yes
Win server yes yes yes yes
VM yes yes yes yes

Examples

Check out our free demo site to see examples.
